LTP3633
200mA, Ultra-Low IQ CMOS LDO Regulators
Description
The LTP3633 series of CMOS low dropout regulators are designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of0.8μA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications.

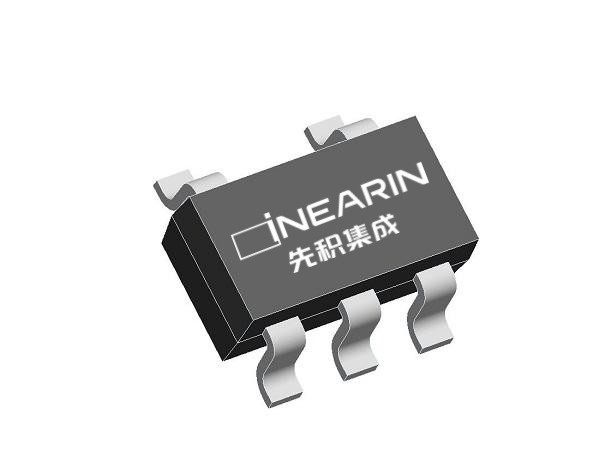

The device is available in SOT23-5L packages.
Advantages And Characteristics
Operating Input Voltage Range: 2.2V to 5.5V
Output Voltage Range: 1.1V to 3.6V (50mV Steps)
Ultra-Low Quiescent Current: 0.8μA Typically
Low Dropout: 250mV Typically at 150mA and VOUT=1.8V
High Output Voltage Accuracy ±1%
Stable with Ceramic Capacitors 1uF
Over-Current Protection
Thermal Shutdown Protection
With auto discharge function at off state
Application
Battery Powered Equipments
Portable Communication Equipments
Cameras, Image Sensors and Camcorders
